WS2812B Individually Addressable RGB LED Strip - DC5V Smart Pixel

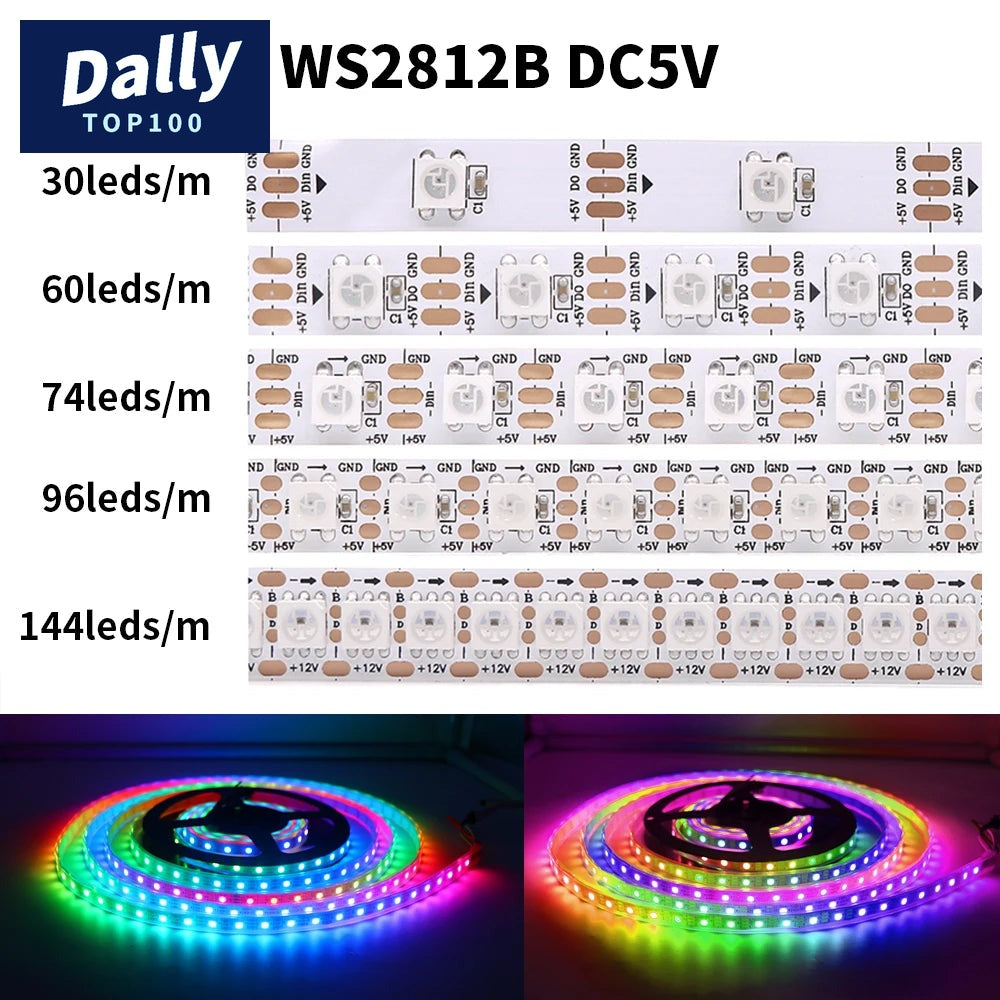

5050 RGB LED Strip Addressable DC 5V 3pin WS2812B IC 30 LEDs/M 60LEDs/M IP30 IP65 Lamp Waterproof Light Tape Chip LED 5M Digital

Please note:

1. The price includes only the LED strip; the power supply and pixel controller are not included.
2. WS2812B should be controlled using a DC5V power supply and a pixel controller.
3. There are soldered joints every 0.5 meters, which is common in electronic products and not a quality issue.

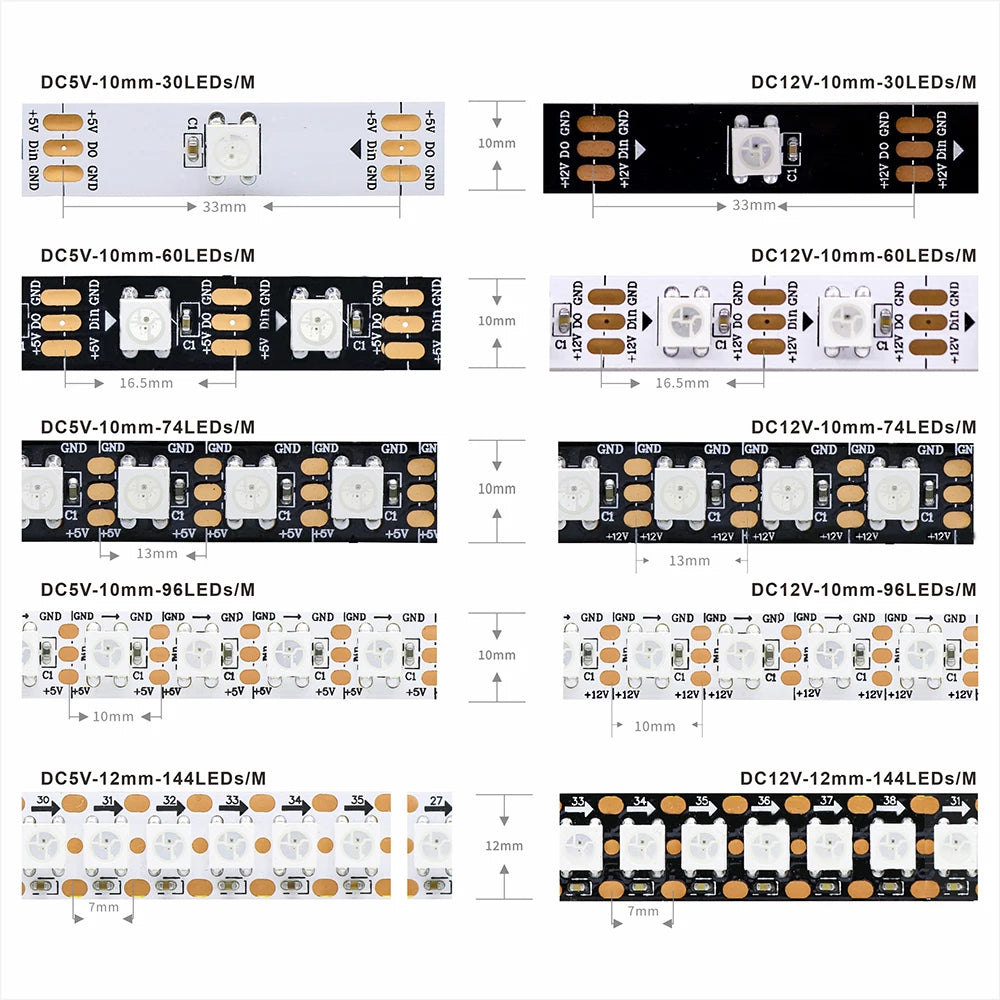

4. The WS2812B LED strip can be cut between each LED to create a custom length. Do not fold the LED strip forcefully.
5. The LED strip includes a 3-pin SM connector: red: VCC, white: GND, green: DATA.
6. The back of the LED strip PCB has adhesive (except for the IP67 model). Ensure the installation surface is smooth, clean, and dry.
7. For longer LED strips, it is necessary to add more power through the 2-pin power lines at both ends to reduce voltage drop.

8.


1. The WS2812B wire-type LED strip uses DC5V (5V power supply not included) and needs to be controlled by a WS2812B LED controller (not included).

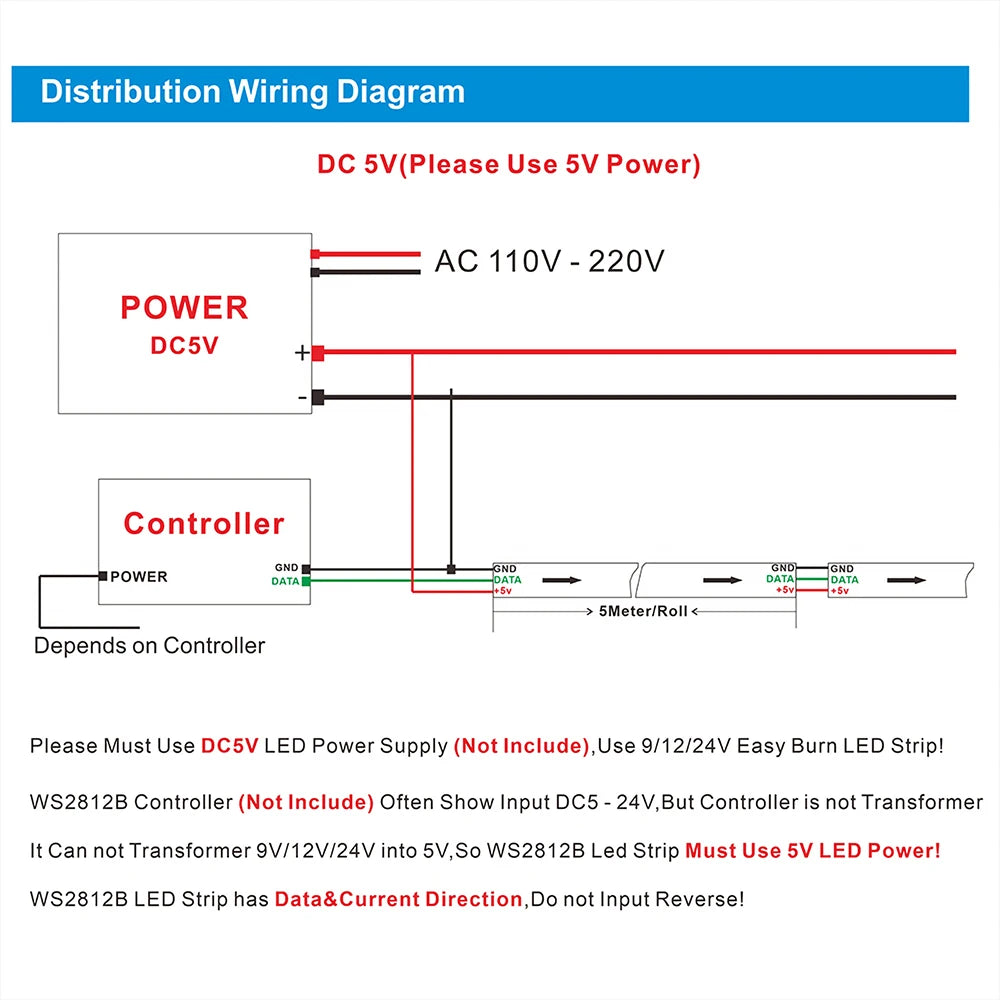

1. The WS2812B LED strip is powered by a "5V power supply" (not included) and controlled by a single data line from a suitable controller (not included).

2. Includes a 3-pin JST connector: red: VCC, white: GND, green: DAT.

3. The back of the wire strip has 3M tape (except for the IP67 model). The installation surface must be smooth, clean, and dry.

4. The LED wire strip can be cut between each LED to create a custom length.

5. Do not fold the wire strip forcefully.

6. Longer strips require power supply at both ends to reduce voltage drop.

7. The wires of the JST 3-pin connector are 20AWG.
